EM300-DI

Built for energy.

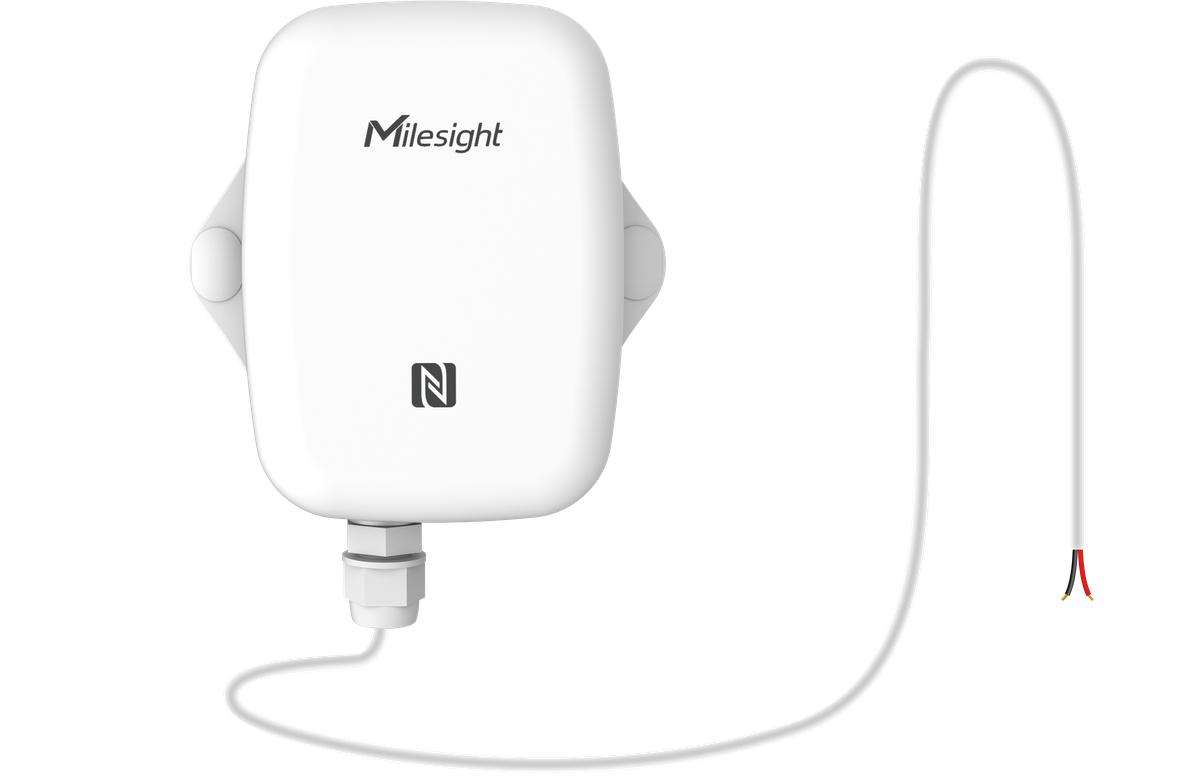

The Milesight EM300-DI is a battery-powered LoRaWAN pulse counter with two dry-contact inputs. Connect it to the pulse output on gas, water or electricity meters to capture utility consumption without replacing existing metering infrastructure. Suitable for sub-metering programmes and ESOS / SECR reporting.

The detail.

Protocol

LoRaWAN EU868 Class A

Inputs

2 × dry-contact pulse

Battery

AA × 2, up to 10 years

IP rating

IP30

Dimensions

88 × 42 × 17 mm

Price

£50.26 ex VAT

A device on its own, or part of the bigger picture.

Buy this device and run it yourself, or have it monitored on the Planetic platform — live dashboards, standards tracking and automatic alerts, with the compliance evidence kept for you.

Good to know.

Do I need a gateway?

Every LoRaWAN sensor talks to a gateway, which carries the data to the internet. One gateway typically covers a whole building. If you do not have one yet, add a Milesight UG65 — the standard choice for most sites.

Do the sensors need WiFi or a SIM card?

No. Sensors connect over LoRaWAN to the gateway. Only the gateway needs an internet connection — by Ethernet or a cellular SIM — so the sensors never touch your IT network.

How are the devices delivered?

Devices are shipped to you in the UK, ready to mount. Most are wireless and battery-powered, so installation is quick and needs no wiring or an electrician.

Can Planetic monitor the devices for me?

Yes. Buy a device outright and run it yourself, or have it monitored on the Planetic platform — live dashboards, standards tracking, alerts and the compliance evidence kept for you.

Are the prices ex VAT?

Yes. Every price shown is the recommended retail price, excluding VAT.
